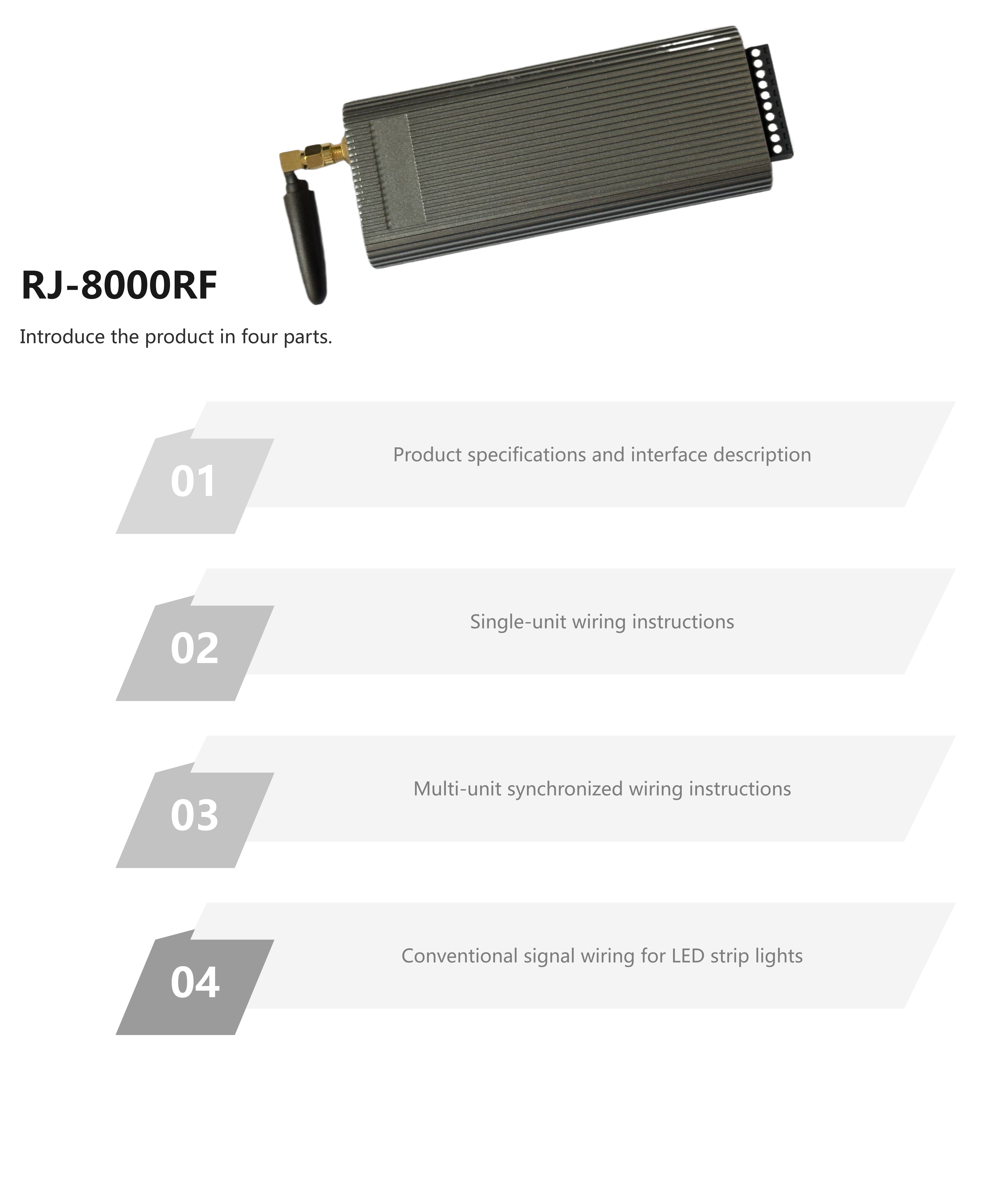

J-8000RF wireless 8-channel synchronous controller,
with a maximum of 1,024 pixels per channel and 8,192 pixels in total.

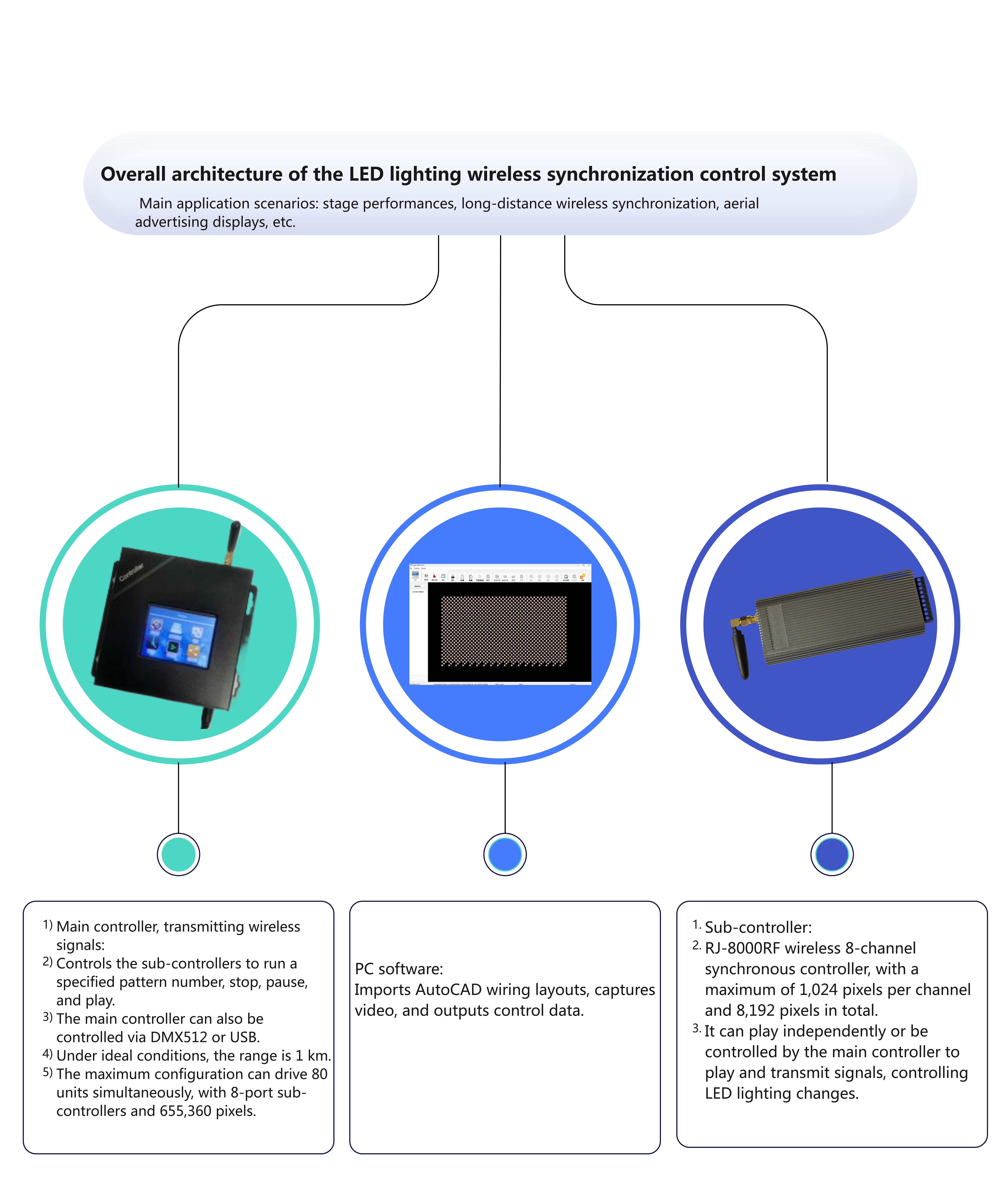

It can play independently or be controlled by the main controller to play and transmit signals, controlling LED lighting changes.
Configuration file:
[Setup]
Channel=23 //default 433, must match the main controller
Laddr=1 //wireless module address of this main controller, must match the main controller
LGroup=6 //wireless module group address of this main controller, must match the main controller
Tadd=1 //wireless module group address of this unit, must match the main controller
TGroup=9 //wireless module group address of this unit, must match the main controller
Play=1 //play on startup
Replay=1 //loop playback or not
SendRF=0 //whether to transmit signal, used when acting as main controller
1 = ON, 0 = OFF
07/09/2026
